N-Type TOPCon 700W–725W Silver Frame Bifacial Double-Glass Solar Panel

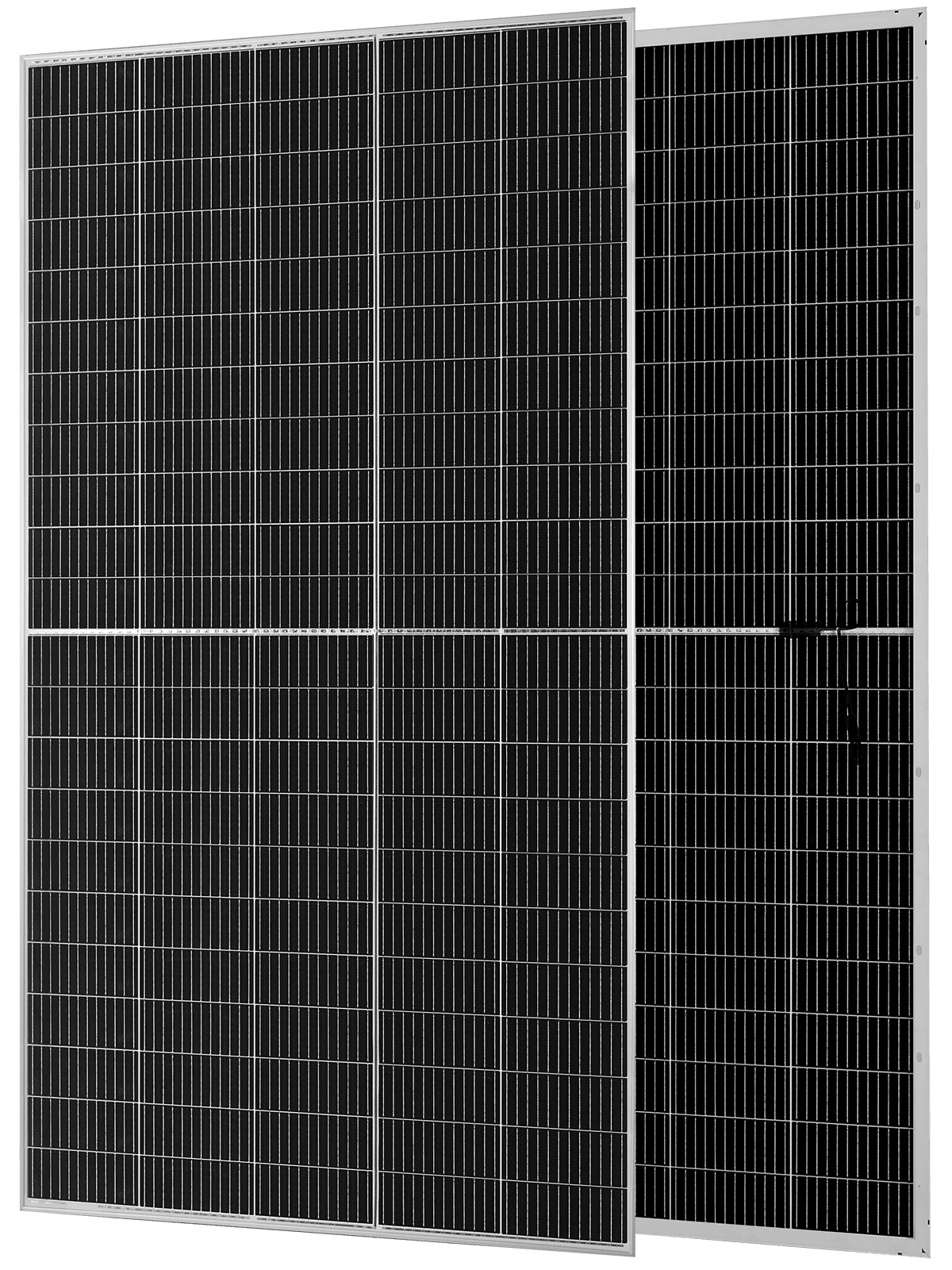

N-Type TOPCon 700W–725W silver frame bifacial double-glass solar panel

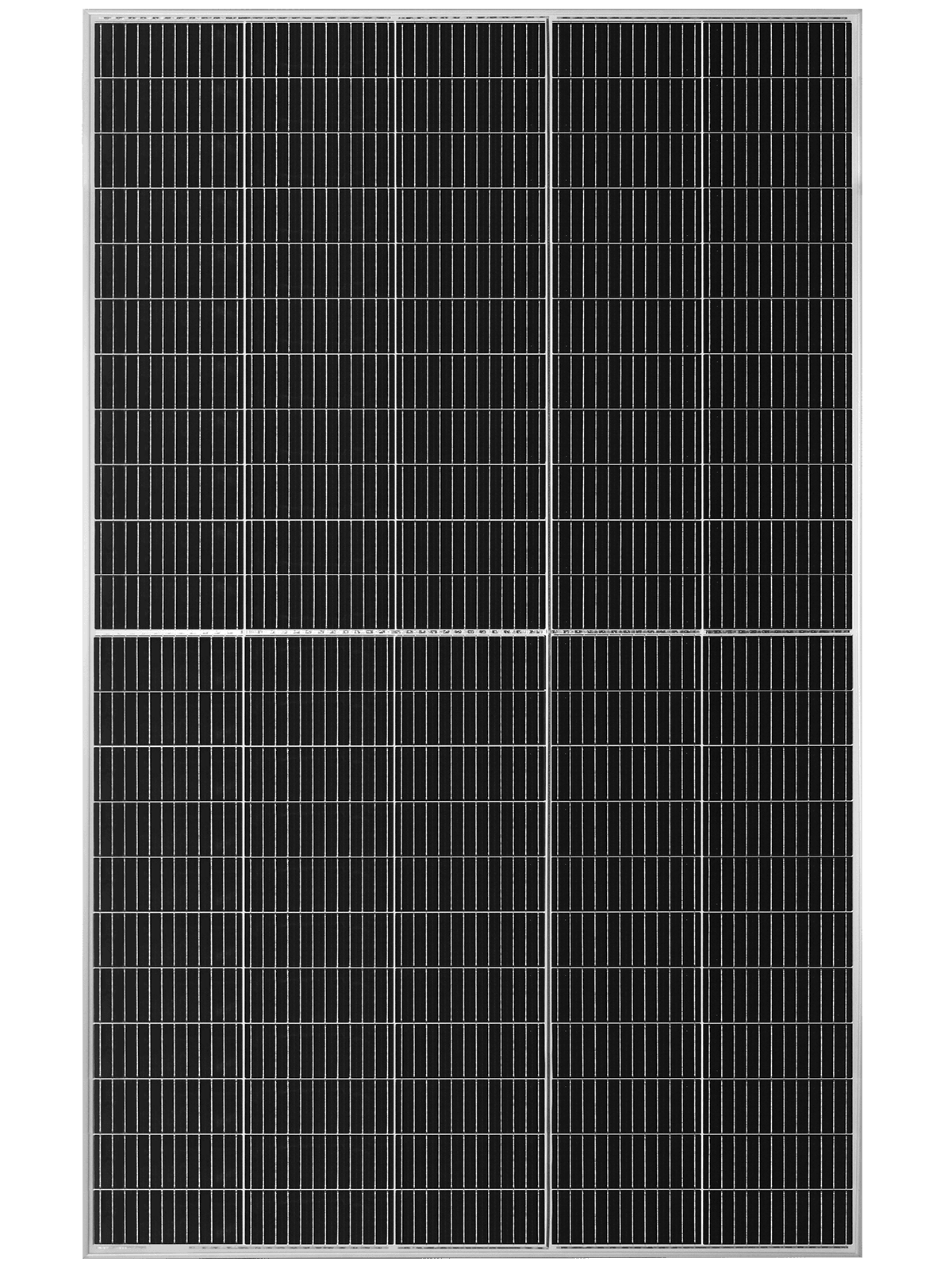

N-Type TOPCon bifacial glass-glass solar panel rear view

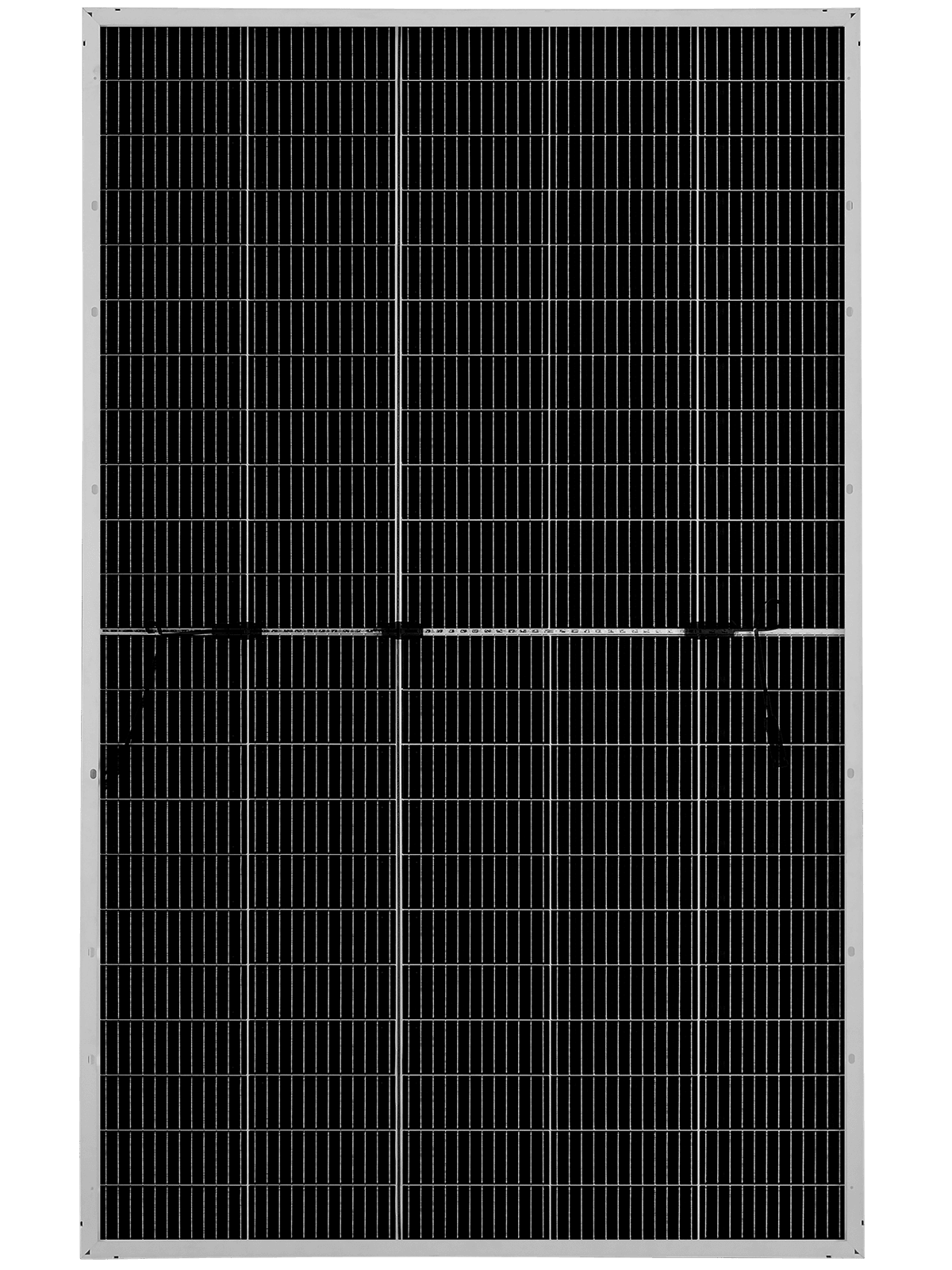

N-Type TOPCon 700W–725W solar panel detail view

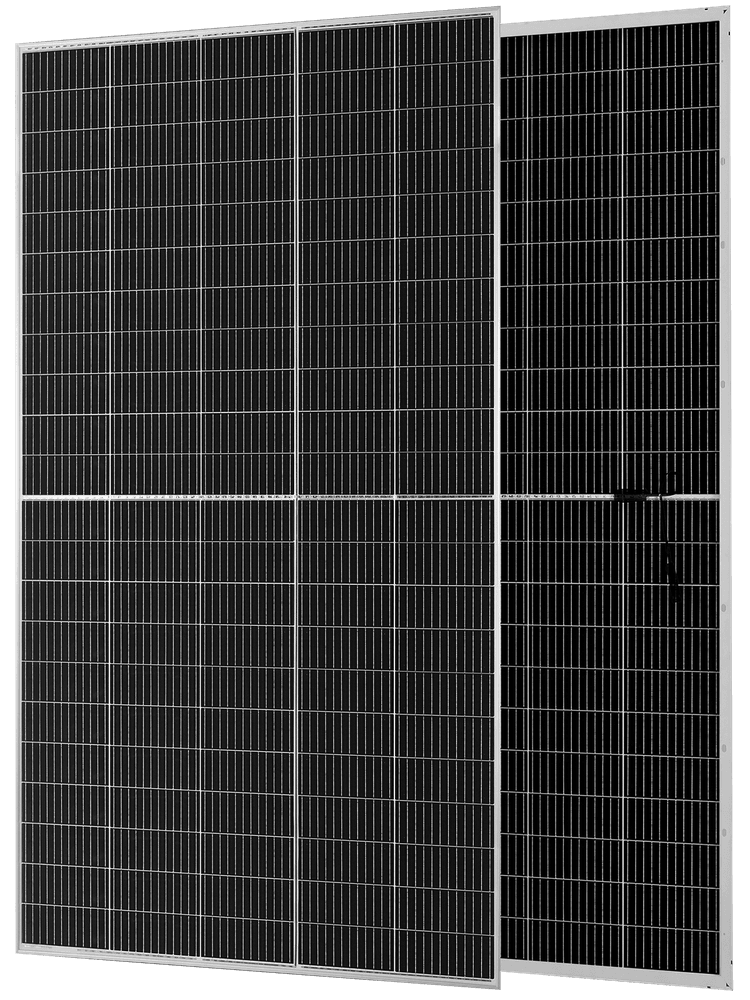

N-Type TOPCon 700W–725W bifacial solar panel
N-Type TOPCon bifacial glass-glass solar module back

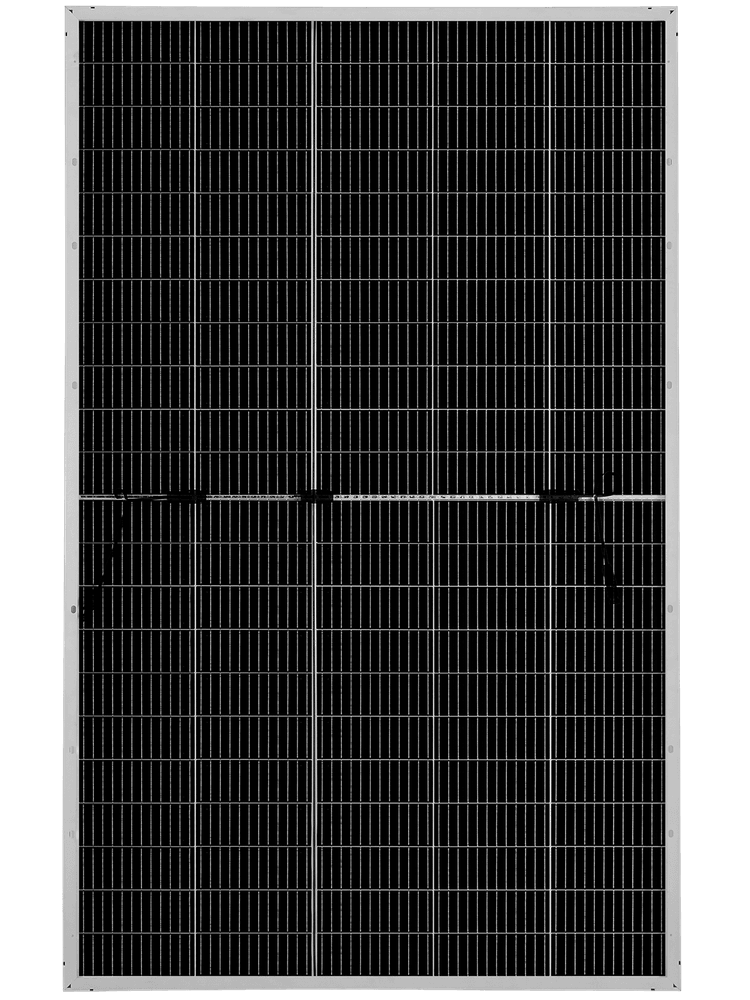

N-Type TOPCon solar panel structural detail

N-Type TOPCon 700W–725W Silver Frame Bifacial Double-Glass Solar Panel

Power Output: 700W / 705W / 710W / 715W / 720W / 725W
Module Efficiency: 22.54% – 23.30%
Weight: 40 ± 5 kg
Dimensions (L × W × H): 2384 × 1303 × 30 mm
Packing: 37 modules per pallet, 666 pcs per 40HQ
Warranty: 30-year product and performance warranty
Module Mechanical Specifications

Mechanical Specifications

Solar Cells
N-type TOPCon 210 mm
Number of Cells
132 cells (6 × 22)
Module Dimensions
2384 mm × 1303 mm × 30 mm
Weight
40±5 kg
Front Glass
2.0 mm AR glass, high-transmittance, heat-strengthened
Encapsulant
POE
Rear Glass
2.0 mm high-transmittance, heat-strengthened glass
Frame
30 mm silver, galvanised or powder-coated steel frame
J-Box
IP68 (3 bypass diodes)
Cable
PV cable 4.0 mm²
Length: N 300 mm / P 300 mm
Length can be customised
Connector
MC4 compatible

* Please refer to the regional datasheet for the specified connector.

Download icon Download technical datasheet

700-725W

Module Power Output

22.54-23.30%

Module Efficiency

30 Years

Warranty

Frequently Asked Questions About TOPCon Solar Panels

Discover More Information About TOPCon Technology

Thanks to N-type cell technology and tunnel-oxide passivated contacts, TOPCon modules show just 1% degradation in the first year and 0.40% per year thereafter. This supports consistently stable energy yield across the full 30-year performance warranty.

TOPCon modules combine high efficiency of up to 23.30%, low light-induced degradation, and a low temperature coefficient of −0.29%/°C, helping them deliver higher yields during summer heat.

Yes. The modules are designed for 5400 Pa snow load and 2400 Pa wind load, and operate safely across a wide temperature range from −40°C to +85°C.

They are available with a clean silver frame and a uniform 132-cell appearance for a neat, consistent roofline. The bifacial design can also deliver additional energy gains.
